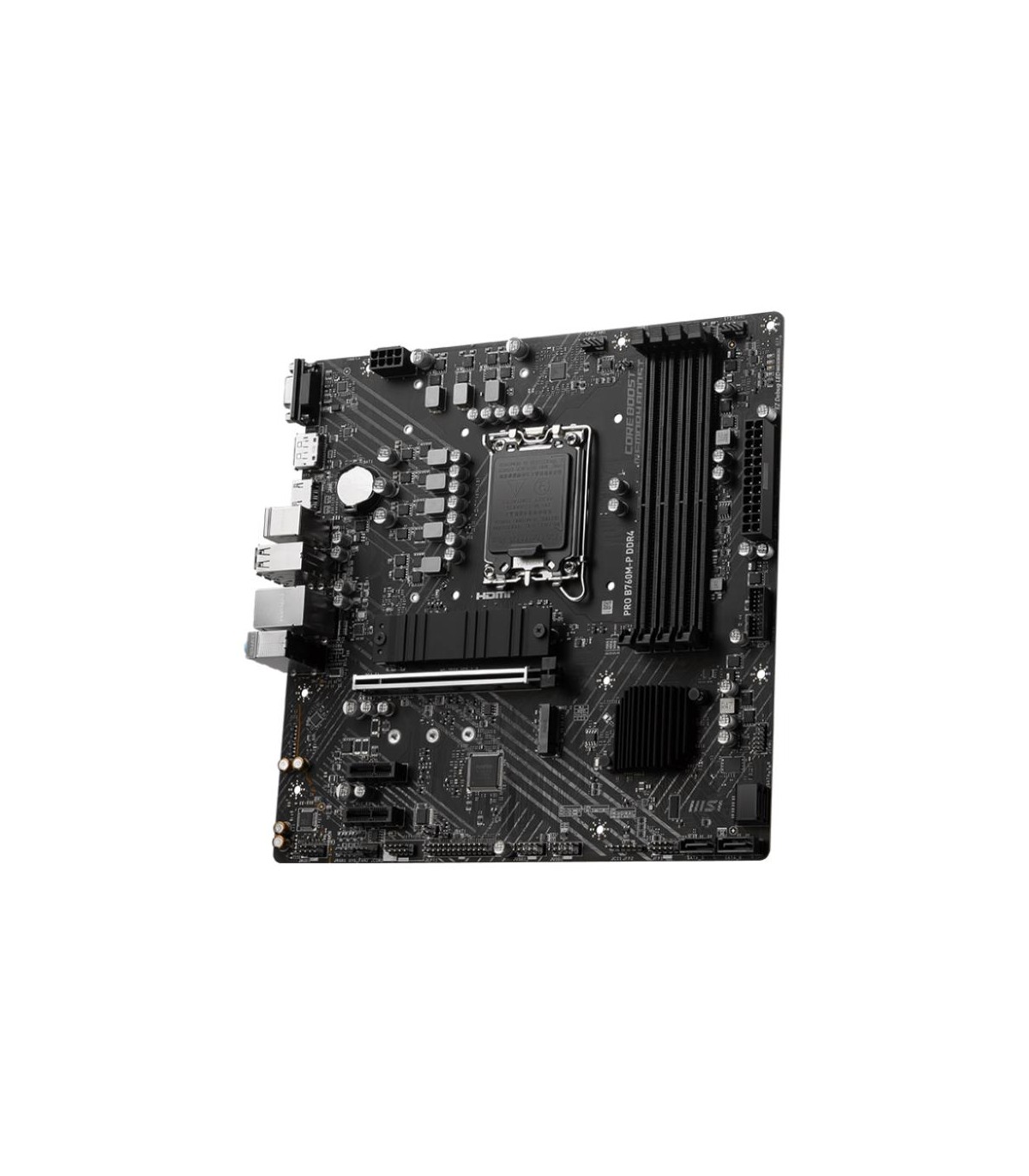

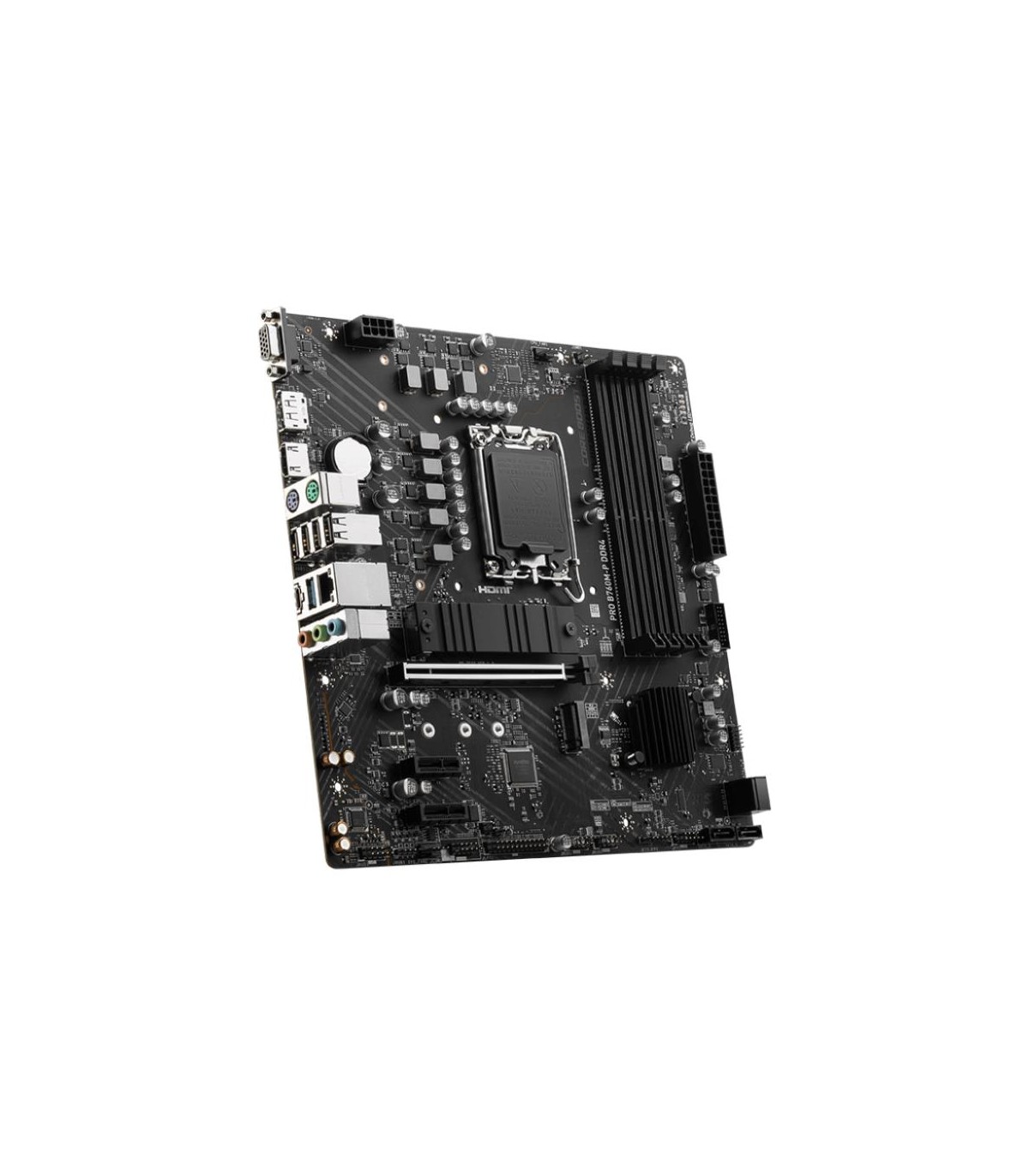

MSI Mainboard Intel B760 Express LGA1700 Micro-ATX Memory DDR4 Memory slots 4 2xPCI-Express 1x 1xPCI-Express 16x 2xM.2 1x15pin

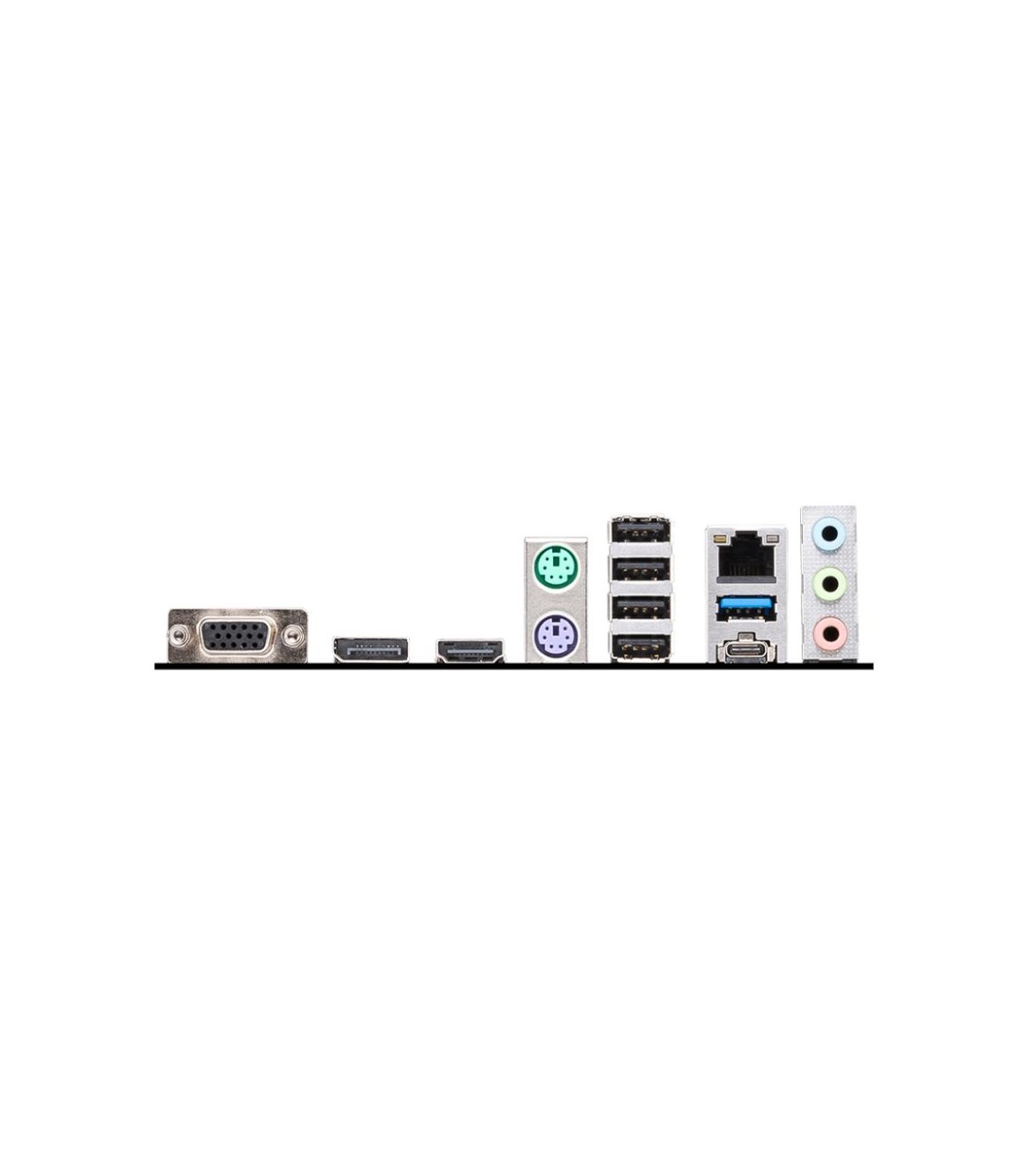

Interfaces

HDMI

1

Other features

Memory type

DDR4

Integrated LAN

Realtek RTL8111H (Gigabit)

RJ45

1

USB 3.2

1

Yes

Unit Box Width

0.275

Unit Box Length

0.3

Unit Box Height

0.055

Category Code

MBI

Memory slots

4

USB-C

1

USB 2.0

Yes

4

Frequency speed

2133/2400/2666/2933/3200/3333/3400/3466/3600/3733/3800/4000/4200/4266/4400/4600/4800 MHz

Audio port

3

DisplayPort

1

Chipset

Intel B760 Express

Model

PRO B760M-P DDR4

PCI-Express 16x

1

PCI-Express 1x

2

PS/2

2

M.2

2

Integrated video

Depending on CPU

SATA

Yes

Socket

LGA1700

Form Factor

Micro-ATX

15pin D-sub

1

Integrated audio

Realtek ALC897

RAID

SATA 0, 1, 5, 10

TPM

Header

Units per Shipping Box

1

Unit Calculated Volume

0.004537 cubm

Product Net Weight

0.72 kg

Unit Calculated Weight

0.87 kg
